Buffer Overflow Exploitation Deep Dive Guide

Despite being one of the oldest vulnerabilities in cybersecurity, Buffer Overflow is still very relevant today. Many hackers think it belongs to the past - but real-world exploitation proves otherwise ❌.

Buffer Overflow bugs still appear in:

• Legacy enterprise applications
• Embedded systems
• IoT devices
• Routers and firmware
• Native binaries written in C / C++

When exploited correctly, a single buffer overflow can lead to full system compromise 🔥.

This thread takes a deep dive into how buffer overflow works, modern exploitation techniques, bypassing protections, and why every bug bounty hunter and exploit developer should master it 🚀.

---

​

What Is a Buffer Overflow Vulnerability? 🧠​

A Buffer Overflow happens when a program writes more data into a buffer than it was designed to hold.
As a result, adjacent memory gets overwritten, leading to unpredictable behavior - or full attacker control 😈.

At a low level:

• Memory is allocated with a fixed size
• Input is not properly validated
• Extra data spills into critical memory regions

This is especially dangerous in low-level languages like C and C++.

---

​

How Buffer Overflow Works Step by Step 🔍​

Understanding the internal process is key to exploitation.

Here’s what usually happens:
1️⃣ The program allocates a fixed-size buffer
2️⃣ User-controlled input exceeds the buffer size
3️⃣ Extra bytes overwrite nearby memory
4️⃣ Return addresses or function pointers get corrupted
5️⃣ Attacker gains control over execution flow 🚀
Once execution flow is controlled, code execution is just a matter of technique.

---

​

Simple Buffer Overflow Example (Conceptual) 🧪​

Consider the following vulnerable C code:

#include <stdio.h>

int main() {
    char buffer[64];
    gets(buffer); // Dangerous function
    printf("Hello %s\n", buffer);
    return 0;
}

Why this is vulnerable ❌:

• gets() does not check input length
• Writing more than 64 bytes overwrites stack memory
• The return address can be overwritten

👉 Supplying more than 64 bytes leads to stack corruption and potential control over EIP / RIP.

---

​

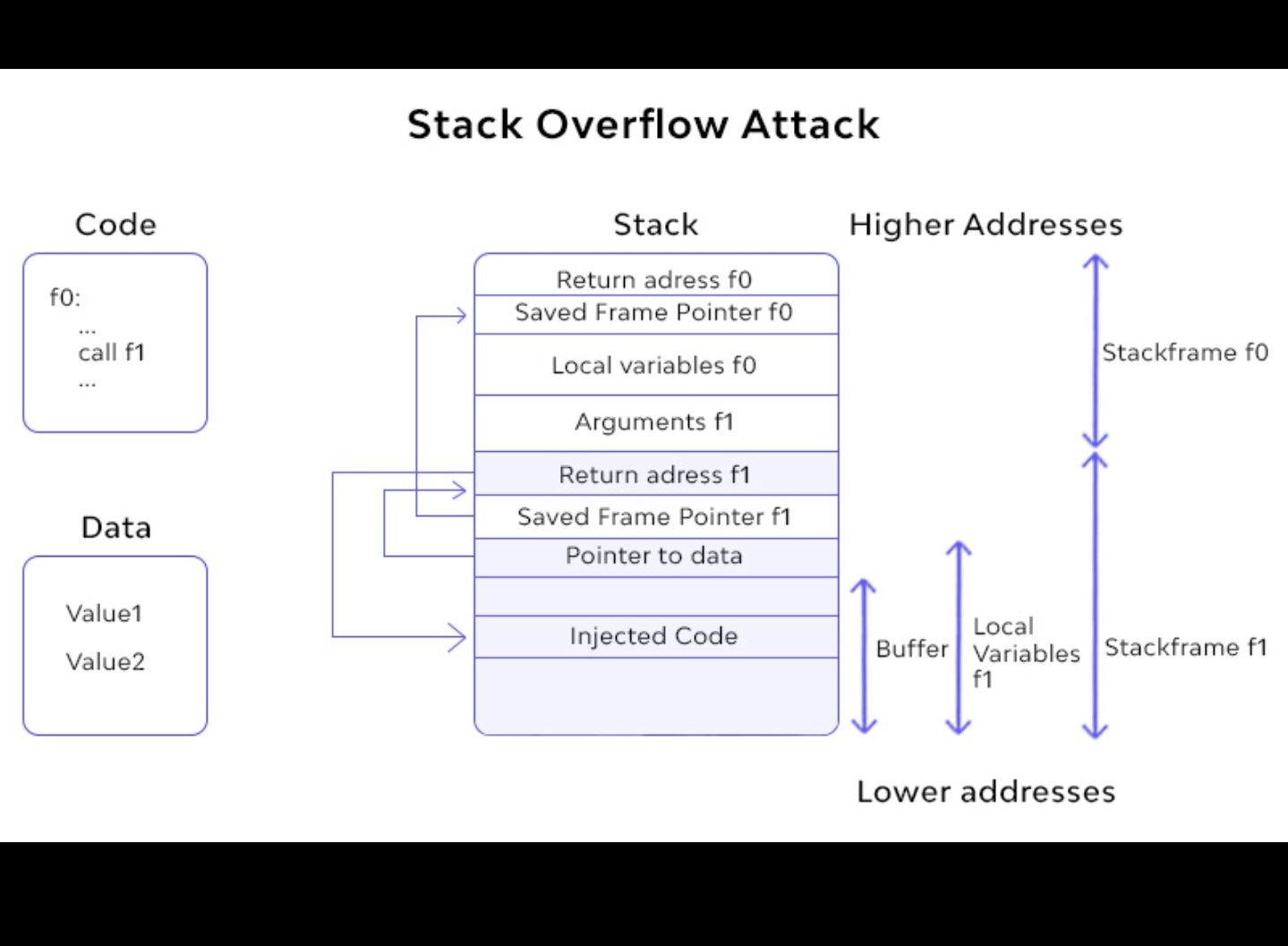

Stack-Based Buffer Overflow Explained ⚔️​

Stack-based buffer overflows are the most famous type.

Attackers typically:

• Overflow a stack buffer
• Overwrite the saved return address
• Redirect execution to attacker-controlled code

Classic exploitation flow:
[ Buffer ][ Padding ][ Return Address ][ Payload ]
If protections are weak or bypassed, this leads to instant shell access 💀.

---

​

Heap-Based Buffer Overflow 🧩​

Heap overflows target memory allocated dynamically using malloc() or new.
Instead of return addresses, attackers overwrite:

• Heap metadata
• Function pointers
• Object vtables

Heap exploitation is more complex but extremely powerful, especially in long-running services 🧠.

---

​

Return-to-libc Technique 🔄​

Modern systems often block executing shellcode directly using NX / DEP.
Return-to-libc bypasses this by:

• Reusing existing libc functions
• Calling system("/bin/sh")
• Avoiding injected shellcode entirely

This technique changed exploitation forever 🔥.

---

​

Return Oriented Programming (ROP) Chains 🧬​

ROP (Return Oriented Programming) is the most advanced buffer overflow technique.
Instead of injecting code, attackers:

• Chain small instruction sequences (gadgets)
• Use existing executable memory
• Fully bypass DEP / NX

ROP allows:

• Arbitrary logic execution
• Syscall invocation
• Sandbox escapes

ROP is a core skill for advanced exploit developers 💻.

---

​

SEH Overwrite Attacks (Windows) 🪟​

On Windows systems, attackers may exploit Structured Exception Handlers (SEH).
How it works:

• Overflow overwrites SEH pointers
• Trigger an exception
• Execution jumps to attacker-controlled address

SEH exploitation is common in legacy Windows software.

---

​

Off-by-One Buffer Overflows 😈​

Even overwriting a single byte can be enough.
Off-by-one vulnerabilities can:

• Modify size fields
• Corrupt saved frame pointers
• Enable further exploitation chains

Never underestimate small overflows ❌.

---

​

Modern Protection Mechanisms and How Attackers Bypass Them 🛡️​

Modern systems include many defenses - but attackers adapt.

---

​

ASLR Bypass Techniques 🔐​

ASLR (Address Space Layout Randomization) randomizes memory addresses.
Common bypass methods:

• Information disclosure bugs
• Partial pointer overwrites
• Brute forcing low-entropy systems

Once ASLR is bypassed, exploitation becomes reliable 🎯.

---

​

DEP / NX Bypass Using ROP 🧠​

DEP / NX prevents executing injected code.
Attackers bypass it using:

• ROP chains
• Return-to-libc
• JOP (Jump Oriented Programming)

These techniques rely on reusing trusted code.

---

​

Stack Canary Bypass 🧪​

Stack canaries detect stack corruption.
Attackers bypass them using:

• Memory leaks
• Brute forcing byte-by-byte
• Logic flaws

Once the canary value is known, protection is useless ❌.

---

​

Heap Spraying for Reliability 📦​

Heap spraying fills memory with attacker-controlled data.
Benefits:

• Higher success rate
• Predictable memory layout
• Easier exploitation in browsers and IoT

This technique is widely used in real-world exploits 🔥.

---

​

Tools Used by Exploit Developers 🛠️​

Professional researchers rely on powerful tools:

• GDB with GEF / PEDA
• pwndbg
• Immunity Debugger
• Radare2
• AFL / Honggfuzz for fuzzing

Mastering these tools is essential for real exploitation 🧠.

---

​

Why Bug Bounty Hunters Should Care 💰​

Buffer overflows are rare but extremely high impact.
They are still found in:

• Legacy enterprise software
• Custom internal binaries
• Embedded firmware
• Routers and IoT devices

📌 One valid buffer overflow often means:

• Full system access
• High bounty payouts
• Critical severity reports 🔥

---

​

Defense and Secure Coding Practices 🛡️​

Developers must reduce risk by:

• Using safe functions like fgets() and snprintf()
• Enabling ASLR, DEP, and stack canaries
• Applying compiler flags:

-fstack-protector
-D_FORTIFY_SOURCE

• Performing regular fuzz testing
• Migrating to safer languages like Rust or Go

Security must be proactive, not reactive.

---

​

Final Thoughts 🚀​

Buffer Overflow is not dead ❌.
It remains one of the most powerful exploitation techniques in cybersecurity ☠️.

If you master buffer overflows, you unlock:

• Deep system understanding
• Advanced exploitation skills
• High-impact bug bounty reports

Learn deeply. Practice responsibly. Hack ethically.
