Forward Proxy vs Service Mesh vs API Gateway Guide

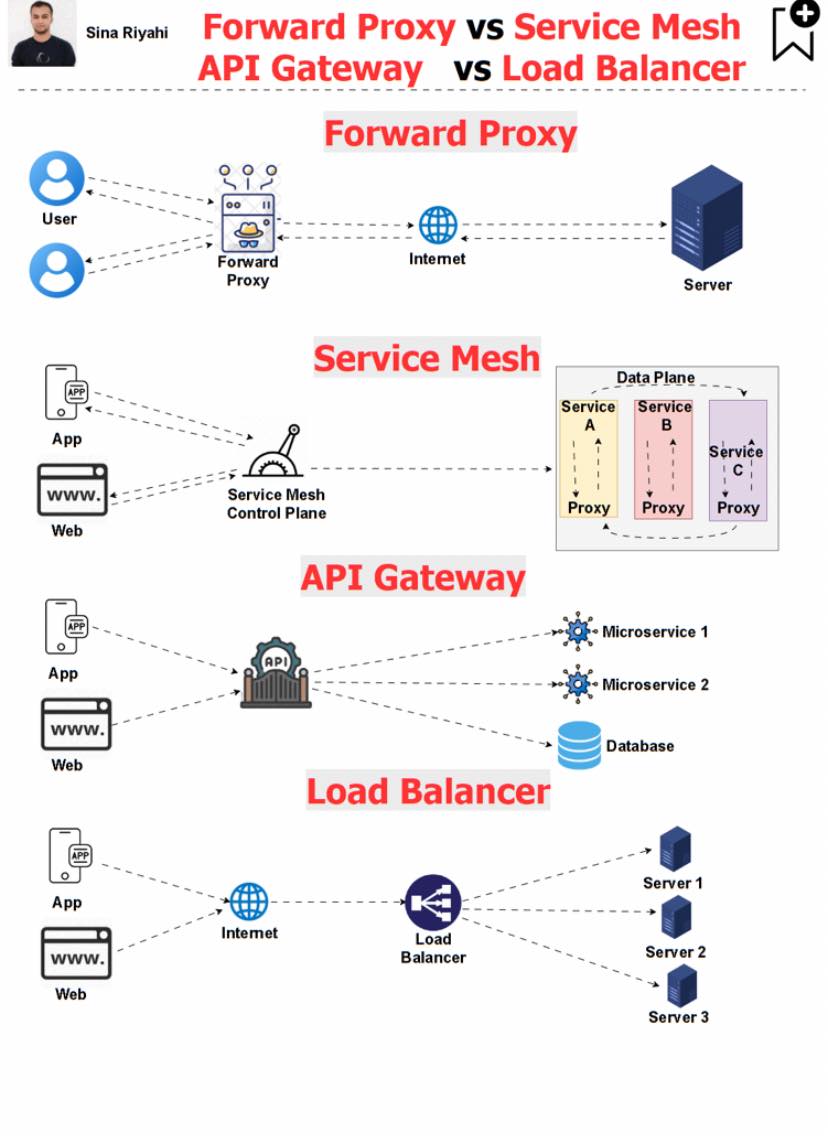

Forward Proxy vs Service Mesh vs API Gateway vs Load Balancer
If you’re into networking, programming, or cybersecurity, you’ve probably heard about Forward Proxy, Service Mesh, API Gateway, and Load Balancer. But do you really know how they differ, when to use each one, and why they’re important?

In this guide, we’ll break down each technology, explain its uses, benefits, and give code examples for easier understanding. Whether you’re building microservices, managing corporate networks, or securing web applications, this guide has you covered.

---

Forward Proxy ​

What is a Forward Proxy?​

A Forward Proxy is a server that acts as an intermediary between clients (users or devices) and the internet. Instead of connecting directly to websites or services, the client sends requests to the proxy first, which then forwards them to the target servers.

Python example using a proxy:

import requests

proxies = {
    "http": "http://127.0.0.1:8080",
    "https": "http://127.0.0.1:8080",
}

response = requests.get("http://example.com", proxies=proxies)
print(response.text)

Here, every request goes through the Forward Proxy before reaching the website.

---

Where and Why to Use a Forward Proxy ​

• Corporate networks: Control and monitor employee internet usage.
• Caching content: Improve response times and reduce bandwidth usage.
• Anonymity: Hide client IP addresses for privacy and security.
• Filtering: Block malicious or restricted sites for compliance or safety.

Forward proxies are also commonly used in penetration testing to intercept and analyze traffic. For example, tools like Burp Suite act as forward proxies to inspect HTTP/HTTPS requests.

---

Service Mesh ​

What is a Service Mesh?​

A Service Mesh is a dedicated infrastructure layer that manages service-to-service communication in microservices architectures. It typically uses sidecar proxies deployed next to each service to handle networking concerns like routing, retries, security, and observability.

Key functions:

• Service-to-service routing
• Automatic retries and failover
• Observability and monitoring
• Security enforcement (mutual TLS, zero-trust policies)

When to Use a Service Mesh ​

• Complex microservices architectures where services need reliable communication.
• Service discovery and automatic load balancing.
• Implementing zero-trust security between internal services.
• Monitoring performance and detecting failures quickly.

Kubernetes + Istio example (Sidecar injection):

apiVersion: v1
kind: Pod
metadata:
  name: sample-app
  labels:
    app: sample
spec:
  containers:
  - name: app
    image: myapp:latest
  # Istio Sidecar will automatically inject a proxy

Here, each Pod automatically gets a sidecar proxy, handling communication, retries, and security.

---

API Gateway ​

What is an API Gateway?​

An API Gateway is a server that acts as a single entry point for client applications to access multiple backend services. Instead of connecting directly to every service, the client sends requests to the API Gateway, which then routes them to the proper backend service.

Why Use an API Gateway ​

• Combine multiple services into a single API for easier client access.
• Enforce security with authentication and authorization.
• Limit request rates to prevent overload (rate limiting).
• Aggregate data from multiple services and return it in a single response.
• Hide internal service complexity from clients.

Node.js + Express example:

const express = require('express');
const fetch = require('node-fetch');
const app = express();

app.get('/api/data', async (req, res) => {
    const service1 = await fetch('http://service1/data');
    const service2 = await fetch('http://service2/data');
    res.json({
        service1: await service1.json(),
        service2: await service2.json()
    });
});

app.listen(3000, () => console.log("API Gateway running on port 3000"));

This example shows how the API Gateway can aggregate data from multiple backend services into a single response.

---

Load Balancer ​

What is a Load Balancer?​

A Load Balancer distributes incoming network traffic across multiple servers to ensure high availability and optimal performance. It can operate at different layers:

• Layer 4 (TCP/UDP)
• Layer 7 (HTTP/HTTPS)

Why Use a Load Balancer ​

• Distribute traffic across web servers, application servers, or databases.
• Improve fault tolerance and reduce downtime.
• Enable horizontal scaling of applications.
• Support high-availability architectures.

Nginx load balancer example:

http {
    upstream backend {
        server backend1.example.com;
        server backend2.example.com;
    }

    server {
        listen 80;

        location / {
            proxy_pass http://backend;
        }
    }
}

Here, Nginx distributes incoming requests evenly across backend servers, improving performance and uptime.

---

Quick Comparison ​

Technology	Main Use	Key Benefits
Forward Proxy	Control internet access for clients	Privacy, monitoring, caching
Service Mesh	Manage service communication	Security, observability, service discovery
API Gateway	Single entry for APIs	Aggregation, security, rate limiting
Load Balancer	Distribute traffic	High availability, performance, scalability

How to Choose the Right Tool? ​

• Use Forward Proxy when you need privacy, filtering, or caching.
• Use Service Mesh if you’re running microservices and need reliable service communication.
• Use API Gateway to simplify API access and implement security policies.
• Use Load Balancer to distribute traffic and maintain high availability.

In real-world projects, combining these tools can create a robust, secure, and scalable infrastructure. For example:

• Forward Proxy for client privacy
• API Gateway for service aggregation
• Service Mesh for internal service management
• Load Balancer for traffic distribution

This combination ensures performance, security, and scalability, whether you’re running a corporate network, cloud services, or a SaaS platform.
