Microservices Example for E-commerce Platforms

Modern e-commerce platforms rely heavily on microservices architecture to build scalable, flexible, and independent services. This example explains a typical microservices setup for an online store, highlighting customer interactions, core microservices, event-driven mechanisms, backend operations, and operational oversight.

Customer Interactions ​

The journey starts with the customer. Customers interact with the application to browse products, add items to the cart, and checkout. These interactions trigger various microservices behind the scenes:

• Checkout Order: When a customer decides to purchase, the checkout process begins, which activates the Order Placement service.
• Shopping Experience: Customers interact with the Shopping Cart microservice to manage items they want to buy.

This modular approach ensures a smooth user experience and keeps each component focused on a specific task.

---

Microservices Overview ​

The architecture uses a combination of microservices, primarily based on REST APIs, with occasional SOAP services for certain third-party integrations. Key characteristics:

• Independent services: Each microservice handles a specific business function.
• Scalability: Services can scale independently based on demand.
• Event-driven interactions: Services communicate asynchronously using events.
• Integration-ready: SOAP and REST APIs enable easy connection with external providers like payment gateways or shipping services.

This design promotes modularity, resilience, and rapid development cycles.

---

Key Microservices ​

Here’s a breakdown of the main microservices in the e-commerce platform:

Shopping Cart (REST API) ​

Handles all customer-selected items and manages the cart session. Example API endpoint:

GET /cart/{customerId}
POST /cart/{customerId}/add
DELETE /cart/{customerId}/remove

The shopping cart microservice keeps track of quantities, discounts, and item availability.

Order Placement (REST API) ​

Manages the process of placing orders once customers finalize their carts. Responsibilities include:

• Validating items and stock availability
• Confirming payment status
• Triggering inventory updates and shipping requests

Example order creation (Python):

import requests

order_data = {
    "customer_id": 123,
    "items": [{"product_id": 456, "quantity": 2}],
    "payment_method": "credit_card"
}

response = requests.post("http://order-service/api/orders", json=order_data)
print(response.json())

Inventory (REST API) ​

Monitors stock levels and ensures products are available before order confirmation. Inventory changes are often published as events for other services to consume.

Example endpoint:

GET /inventory/{productId}
POST /inventory/{productId}/update

Payment (REST API) ​

Handles secure payment processing through third-party payment providers like PayPal or Stripe. Key responsibilities:

• Authorizing transactions
• Processing payments
• Logging transactions securely in the Payments Database

Shipping (REST API) ​

Coordinates logistics for delivering placed orders. Shipping microservice interacts with courier APIs, tracks shipments, and updates order status in real time.

---

Event Publishing and Consumption ​

The platform uses an event-driven architecture to maintain data consistency and trigger actions across services.

• Publish Inventory Event: When stock levels change, the Inventory service sends an event so other services (like Order or Cart) can react.
• Publish Order Event: Once an order is placed, the Order service publishes an event to update inventory, notify payment services, and inform shipping.

Example using Kafka (Python):

from kafka import KafkaProducer
import json

producer = KafkaProducer(bootstrap_servers='localhost:9092')
event = {"type": "order_placed", "order_id": 123}
producer.send('order-events', json.dumps(event).encode('utf-8'))

• Services consume these events asynchronously, ensuring loose coupling and real-time updates.

---

Backend Operations ​

The backend contains additional services supporting e-commerce operations:

Supplier Backorder (REST API)​

Communicates with third-party suppliers to handle backordered items. This ensures customers are notified if stock is insufficient.

Reporting (REST API) ​

Collects and analyzes data from multiple microservices, often using OLAP databases for detailed analytics and business intelligence.

Payments Database ​

Securely stores transaction records for auditing, refunds, and reporting. Sensitive information is encrypted to comply with PCI DSS standards.

---

Consistent Data Flow ​

Microservices rely on event-driven interactions to maintain data consistency:

• The Order service consumes inventory events to prevent overselling.
• The Payment service listens to order events to process payments.
• The Shipping service reacts to confirmed orders to initiate deliveries.

This approach ensures that even if one service is temporarily down, data flow continues without breaking the overall system.

---

Operational Oversight ​

Monitoring and managing microservices is critical for reliability and uptime:

• Operations personnel use dashboards and monitoring tools to track service health, event flows, and system performance.
• Alerts are set up for failures in order processing, inventory updates, or payment transactions.
• Logging and observability are integral parts of microservices architecture, ensuring rapid issue resolution.

---

Benefits of Microservices in E-commerce ​

1. Modularity: Each service focuses on a single function, making development easier.
2. Scalability: Services like Payment or Inventory can scale independently based on demand.
3. Flexibility: REST and SOAP APIs enable smooth integration with third-party services.
4. Resilience: Failures in one service do not break the entire platform.
5. Rapid Deployment: Microservices can be updated or replaced without impacting other components.

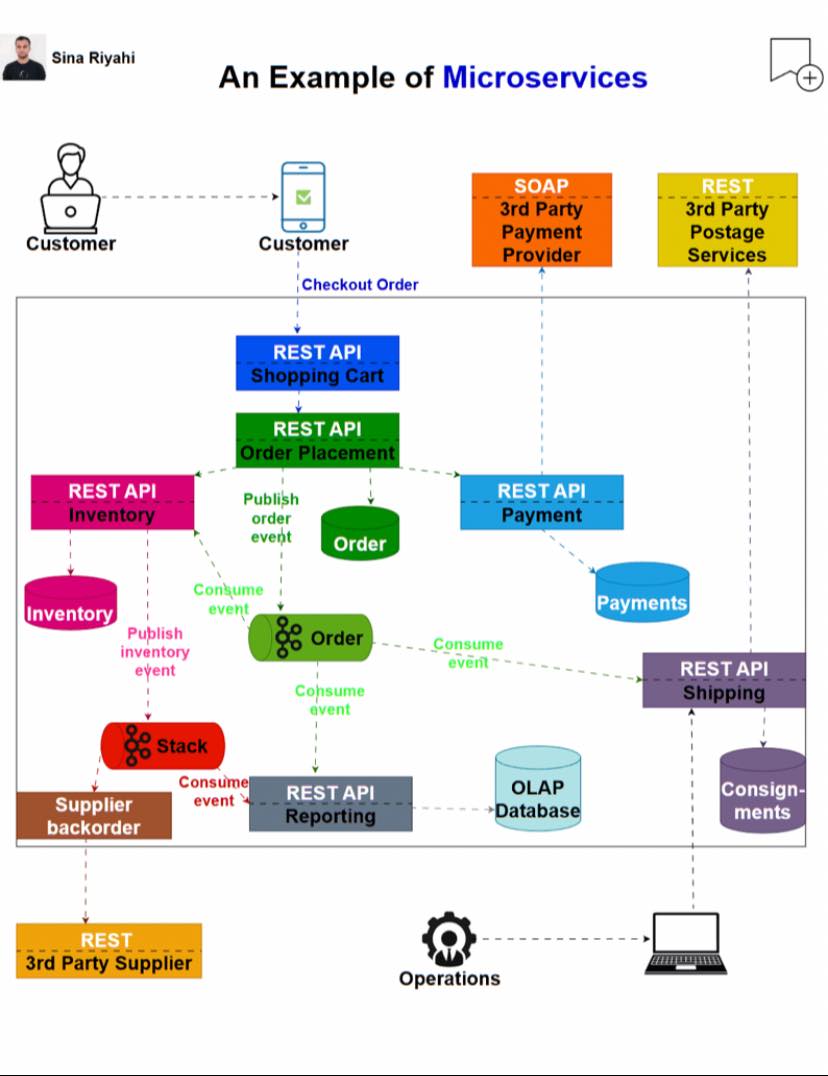

Example workflow diagram:

1. Customer adds items → Shopping Cart
2. Customer places order → Order Placement
3. Inventory checked → Inventory Event Published
4. Payment processed → Payment Service
5. Shipping initiated → Shipping Service

Each microservice operates independently but stays connected through events and APIs.

---

Conclusion ​

This microservices example demonstrates how an e-commerce platform can:

• Provide a smooth customer experience
• Maintain data consistency
• Integrate with third-party services
• Scale efficiently
• Enhance resilience and observability

By leveraging REST APIs, SOAP services, and event-driven communication, businesses can build flexible, modular, and powerful platforms capable of handling modern e-commerce demands.
